We are SG SERVO, the Leader in Motion Control!
Civilian Industry

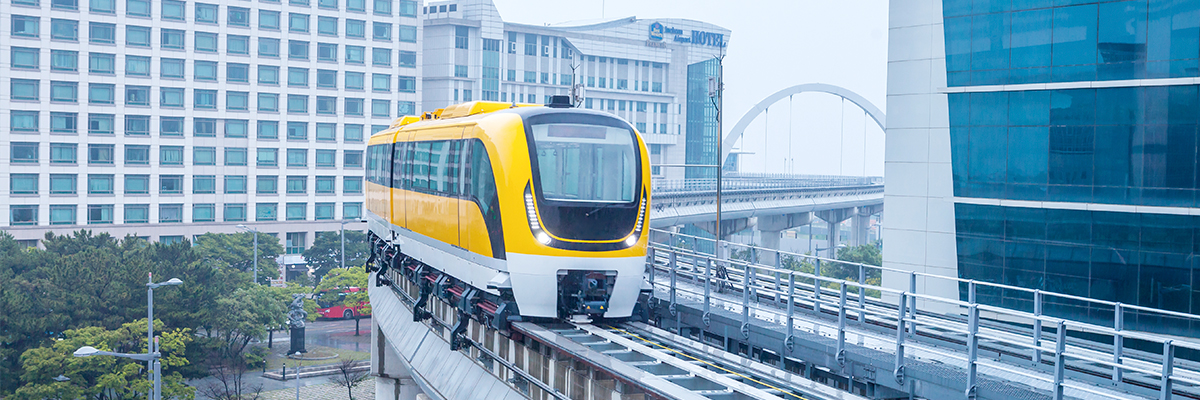

Magnetic Levitation Train
-

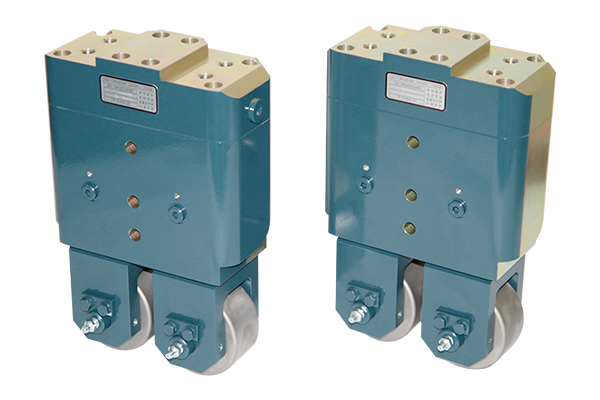

Emergency Driving Assembly
-
Power Pack
| Function | Roller driving system for emergency |
| Max. Force | 17.8 kN |
| Operating Pressure | 166 bar |
| Supply Voltage | 24 VDC |

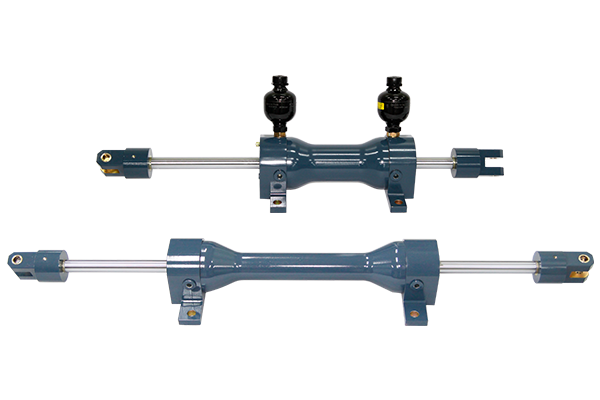

Steering Cylinder
| Function | Improve driving safety in curve sections |
| Type | Double rod, Double acting |
| Max. Operating Pressure | 210 bar |
| Stroke | ±210 mm (inner) ±76 mm (outer) |
Near-surface Tram System

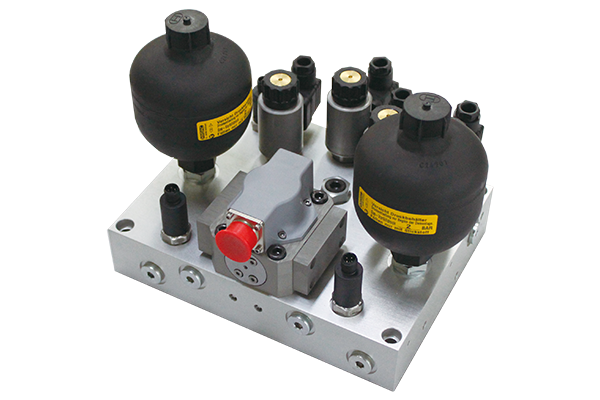

Manifold
| Function | Steering cylinder control |
| Operating Pressure | 140 bar |
| Feature | Built in servo valve |

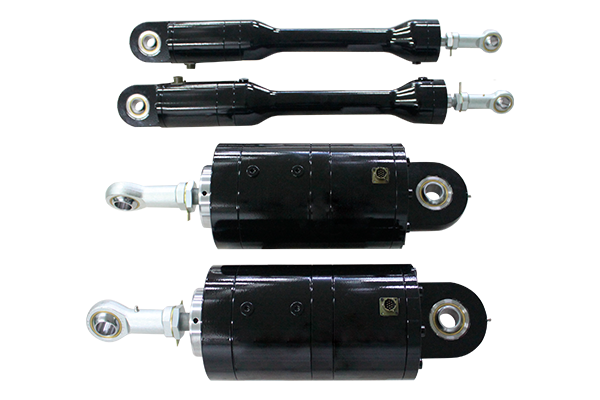

Steering Cylinder
| Function | Improve driving safety in curve sections |
| Type | Single rod, Double acting |
| Stroke | ±159 mm (Articulation) ±13 mm (Bogie) |
| Feature | Built in LVDT |
